Need one China factory that can supply stainless butt weld fittings and forged flanges on the same material list for a chemical or EPC project? Huabo Pipe Industry Co., Ltd. (brand HuaboPipe) manufactures both: cold press formed butt weld fittings and forged flanges. Fittings to EN 10253, DIN or JIS; flanges to EN 1092-1 or to drawing. Stocked grades: 304/304L, 316/316L, 310S, 321, 2205, 2507. Matching stainless pipe and valves can be supplied with the same list when the project needs them. One inquiry, one order.
Facts at a glance
| Item | Detail |
|---|---|
| Company | Huabo Pipe Industry Co., Ltd. (HuaboPipe) |
| Founded | 2004; company in Wenzhou; factory in Lishui, Zhejiang |
| Stock point | Wenzhou Longwan warehouse for regular sizes |
| Manufactured | Stainless butt weld fittings and forged flanges |
| On request | Matching stainless pipe and matching valves (models confirmed per list) |
| Size range | DN15 to DN1200; larger to drawing, up to DN3000 |
| Materials | 304/304L, 316/316L, 310S, 321, 2205, 2507 |
| Fittings standards | EN 10253, DIN, JIS, or to drawing |
| Flange standards | EN 1092-1; non standard to drawing |
| Documents | EN 10204 3.1 MTR; PMI; corrosion tests on request; PT / UT / RT / hydro per order |
| Certificates | Special equipment production license; ISO 9001 / 14001 / 45001; EU PED (TÜV SÜD); DNV; BV; National High Tech Enterprise; Zhejiang specialized and innovative SME |
What one list can cover
- Butt weld fittings: elbows, tees, crosses, concentric and eccentric reducers, caps, stub ends. Cold press formed. Standard sizes DN15 to DN1200; larger sizes are made to drawing, up to DN3000. Sch10s to XXS.
- Forged flanges: WN, SO, LWN, blind, lap joint. EN 1092-1 or to drawing.
- Matching supply: stainless pipe and valves when the project list needs them; valve models confirmed against the MTO.
- Grade guidance (design always wins): 304/304L for general corrosion; 316L where chlorides or chemical media matter; 321 where intergranular corrosion is a risk; 310S for high temperature; 2205 or 2507 for tougher chloride service.

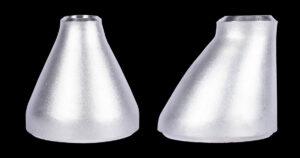

LWN flanges are common on vessel and heat exchanger openings. Lap joint flanges pair with stub ends. Eccentric reducers keep one side flat for venting or draining. Related pages: LWN flanges, lap joint flanges, stub ends, eccentric reducers, product centre.
Quality and certificates
Fittings and flanges keep heat number traceability to the MTC. EN 10204 3.1 MTRs are available. PMI is available. Corrosion tests can be done to customer requirements. PT, UT, RT and hydrostatic tests follow the order. Third party inspection (for example SGS, BV, TÜV) is welcome. Heat treatment: solution annealing. Surface treatment: polishing, pickling, sand blasting and sand tumbling.
- Special equipment production license (pressure piping components)
- ISO 9001, ISO 14001, ISO 45001
- Certificate of Quality Assurance System (PED 2014/68/EU Annex I 4.3 & AD 2000-Merkblatt W 0), issued by TÜV SÜD
- DNV and BV manufacturer approvals
- National High Tech Enterprise; Zhejiang specialized and innovative SME
Certificate scans: Certificates. Company overview: About HuaboPipe.
Stock and lead time

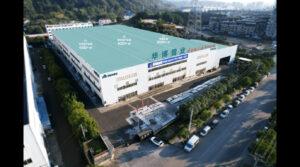

Regular sizes are held at the Wenzhou Longwan stock point. Non standard and large diameter parts are scheduled at the Lishui factory. After the full list is confirmed, one combined lead time is given so fittings and flanges can ship together.
How to inquire
Send the project MTO or drawings with medium, temperature, pressure, grade, standard, quantity, test needs and delivery place. Incomplete lists are fine; we check line by line and ask for missing fields. Checklist: Buying guide.
Email lucas@hbpipe.com or use the Contact form.
FAQ
Can fittings and flanges for a chemical project come from one factory?
Yes. HuaboPipe manufactures butt-weld fittings and forged flanges, and supplies stainless steel pipe and valves as project-matched items. One inquiry, one order.
Can flanges follow EN 1092-1 for process piping?
Yes. Forged flanges can be made to EN 1092-1. Non standard parts follow the drawing.
304 or 316L for chemical lines?
304/304L is common in general corrosion service. 316L is more often chosen where chlorides or chemical media matter. For tougher chloride service, consider 2205 or 2507. Final grade follows medium, temperature and the design.
How are matching valves supplied?
When the project needs valves, they can be supplied with the fittings and flanges list. Models are confirmed against the MTO.
Can you provide MTRs and third party inspection?
Yes. EN 10204 3.1 MTRs and PMI are available. Third party inspection (for example SGS, BV, TÜV) can be arranged.
How should I send the list?
Email the MTO or drawings to lucas@hbpipe.com.
