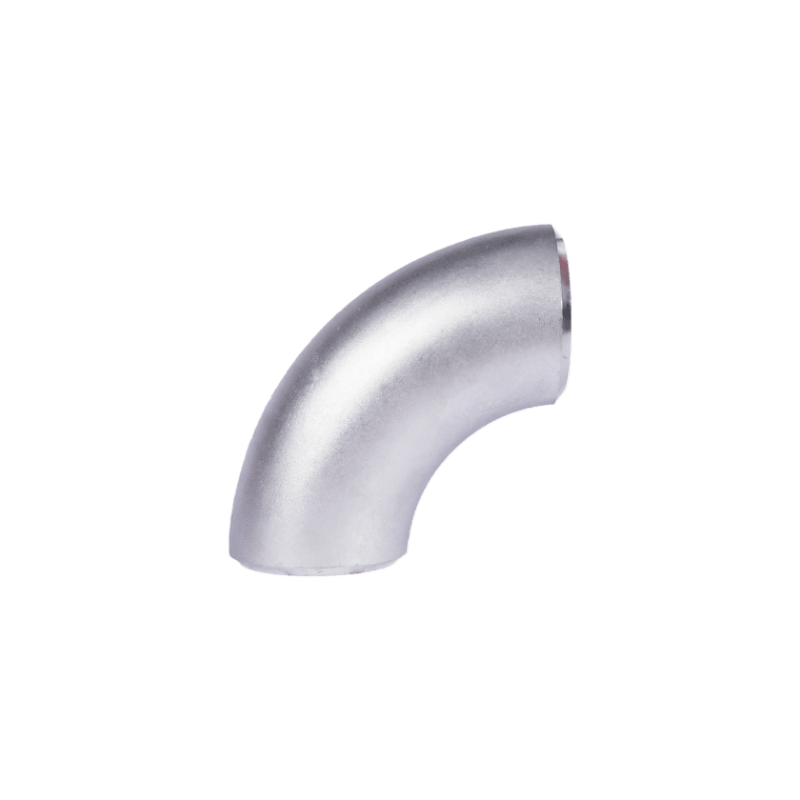

Stainless steel 90° elbow
Stainless steel 90° elbow
Stainless steel 90° elbow
Stainless steel 90° elbow

Stainless steel 90° elbow

Stainless steel 90° butt-weld elbows made to order. For 304/316L purchasing lists, specify the size, wall thickness, radius and quantity for each item.

Specifications

Size
DN15–DN1200 (about 1/2″–48″) usual; larger per drawing, up to DN3000
Wall / SCH
Sch10s–XXS, matched to pipe
Standard
GB/T 12459, ASME B16.9, EN 10253, DIN, JIS; others per drawing
Bend radius
LR 1.5D usual; SR 1.0D; 3D / 5D per order
Angle
90°
Bevel / ends
BW bevel per standard or drawing
Grade
304/304L, 316/316L, 310S, 321, 2205, 2507
Material specification
ASTM A403 WP304/WP304L, WP316/WP316L, WP321, WP310S; ASTM A815 WPS31803/S32205, WPS32750
Process
cold-formed → solution annealed → beveling and sizing → surface treatment (polishing, pickling, sand blasting and sand tumbling)
Inspection
MTR available on request; hydrotest/NDT and lead time per order
Marking
Hard stamping or ink marking, per standard or order
Certificates
ISO 9001/14001/45001, PED, DNV, BV, TÜV SÜD factory approvals; see this site’s Certificates page
Inquiry checklist
When inquiring, state: size, wall/SCH, grade, standard, qty; for elbows also radius and angle; non-standard parts can be made to drawing or sample.
Get a Quote View All Products

304 vs 316L: How to Choose?

304 vs 316L: How to Choose? (YouTube)

HuaboPipe supplies stainless steel 90° butt-weld elbows for stockists, distributors and project buyers. Long-radius 1.5D is the usual type; short-radius 1.0D and non-standard dimensions are reviewed against your drawing and specified standard. Include the required seamless or welded construction in your inquiry so we can confirm the manufacturing requirements before quotation.

How to choose

Specify the bend radius, wall thickness, material grade and design standard shown on your drawing. For a material review, include the fluid composition, concentration, operating temperature and pressure. These details are needed to review the requested specification.

Buying 90° Elbows for Stock Replenishment?

For a mixed-size trial order, send a line-by-line list of the elbows you need. Standard items can be reviewed together; minimum quantities for special items and the lead time are confirmed after checking the specifications, quantities and production schedule.

What to include in each line

  • 90° elbow: long radius (LR), short radius (SR), or a drawing reference
  • Material specification and exact grade, such as 304 or 316L
  • DN or NPS size and schedule or wall thickness
  • Seamless or welded construction requirement
  • Dimensional standard and quantity
  • Required marking, inspection documents and any additional testing

Example inquiry line (for quotation only):
90° LR elbow | 316L | NPS 2 | Sch40S | Seamless required | EN 10253 | 20 pcs

Add your required material specification and inspection documents. Please also include the destination and requested delivery date for the order.

Material Documents & Traceability

Material documentation with heat numbers, chemical composition and mechanical test results can be supplied with traceability to the corresponding products or batches. Please specify the document type and marking requirements before ordering. Inspection and certificate coverage are confirmed for the ordered items.

Need tees, reducers or caps in the same purchasing list? See our stainless steel butt-weld fittings supply overview, or send your complete list for a quote.

FAQ

What sizes are available?

Standard sizes DN15 to DN1200; larger sizes are made to drawing, up to DN3000. Availability depends on the diameter, wall thickness and material combination, which we confirm with your inquiry.

Which standard do you follow?

GB/T 12459, ASME B16.9 (dimensions), EN 10253, DIN or JIS; other standards per drawing.

304 or 316L?

304/304L suits general corrosion service. 316L contains molybdenum and is preferred for chlorides and many chemicals. For seawater or high-chloride service, duplex 2205 or super duplex 2507 is usually specified. The project material specification governs; send the fluid and temperature if unsure.

Can you make OEM / non-standard elbows?

Yes. Send a drawing or sample requirement.

Can I combine different elbow sizes in a trial order?

Yes, mixed-size trial orders can be discussed for standard items. Send the quantity and specification for each line. We will confirm the available combinations, any minimum quantities and lead time with your quotation.

Do you supply from stock or make to order?

This page offers elbows made to order. Send your list; minimum quantity and lead time are confirmed with the quote.

See the buying guide for inquiry details and our certificates for document scope and validity.
