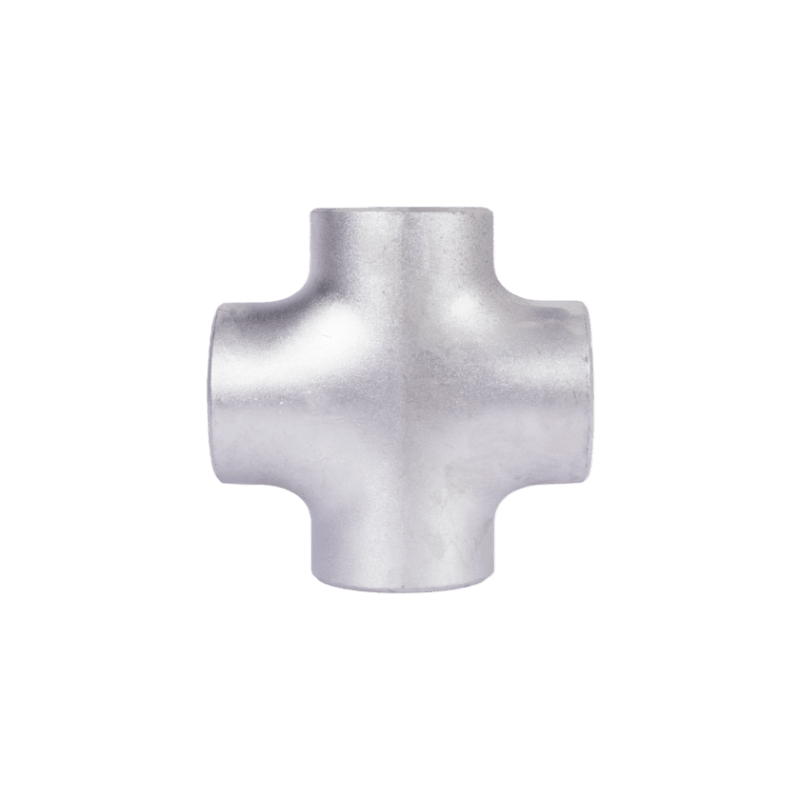

Stainless Steel Crosses
A butt-weld cross has four outlets.
Specifications
Size
DN15–DN1200 (about 1/2″–48″) usual; larger per drawing, up to DN3000
Wall / SCH
Sch10s–XXS, matched to pipe
Standard
GB/T 12459, ASME B16.9, EN 10253, DIN, JIS; crosses usually need drawing confirmation
Bevel / ends
BW bevel per standard or drawing
Grade
304/304L, 316/316L, 310S, 321, 2205, 2507
Material specification
ASTM A403 WP304/WP304L, WP316/WP316L, WP321, WP310S; ASTM A815 WPS31803/S32205, WPS32750
Process
cold-formed → solution annealed → beveling and sizing → surface treatment (polishing, pickling, sand blasting and sand tumbling)
Inspection
MTR available on request; hydrotest/NDT and lead time per order
Marking
Hard stamping or ink marking, per standard or order
Certificates
ISO 9001/14001/45001, PED, DNV, BV, TÜV SÜD factory approvals; see this site’s Certificates page
Inquiry checklist
When inquiring, state: size, wall/SCH, grade, standard, qty; for reducing, state run and branch sizes; non-standard parts can be made to drawing or sample.
